| 工廠代號 | P-001 | P-002 | P-003 | P-004 | P-005 | P-006 | P-007 | P-008 | |

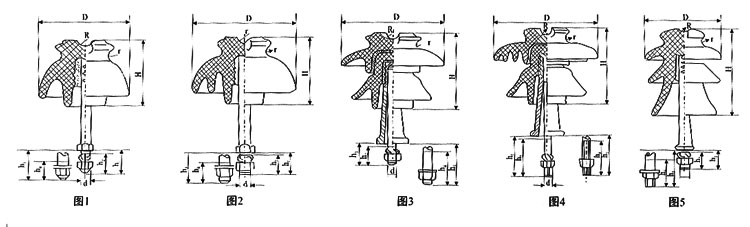

| 圖號 | 1 | 1 | 2 | 5 | 5 | 3 | 5 | 4 | |
| 型號 | P-6T/M | P-10T/M | P-15T/M | PQ-10T/M | PQ-15T/M | P-20T/M | PQ-20T/M | P-35T/M | |
| 主要尺寸(mm) | H | 90 | 105 | 120 | 133 | 137 | 165 | 188 | 200 |
| H1 | / | 176 | 180 | 183 | 185 | 235 | 235 | / | |
| H2T/M | / | 35/140 | 40/140 | 40/140 | 40/140 | 45/40 180 | 45/140 180 | / | |
| D | 125 | 145 | 190 | 140 | 152 | 228 | 175 | 280 | |
| D1 | M16 | M16 | M18 | M18 | M18 | M20 | M20 | M20 | |
| R1 | 9 | 9 | 13 | 13 | 13 | 14 | 14 | 16 | |
| R2 | 9 | 10 | 11 | 9.5 | 12.5 | 13 | 13 | 13 | |
| 額定電壓(KV) | 6 | 10 | 15 | 10 | 15 | 20 | 20 | 35 | |
| 爬電距離(mm) | 160 | 195 | 280 | 255 | 295 | 370 | 370 | 560 | |
| 標準雷電沖擊耐受電壓(KV) | 70 | 80 | 110 | 90 | 110 | 140 | 132 | 175 | |
| 工頻電壓(KV) | 濕電 | 28 | 82 | 45 | 40 | 50 | 57 | 50 | 80 |
| 擊穿 | 65 | 78 | 98 | 130 | 135 | 110 | 140 | 156 | |
| 彎曲破壞負荷(KN) | 14 | 14 | 14 | 11 | 11 | 14 | 14 | 14 | |
| 重量(kg) | 1.5/1.9 | 2.1/2.3 | 3.4/3.7 | 2.35/2.7 | 3/3.3 | 6.2/6.7 | 6.2/6.7 | 10/10.5 | |
